Interior for Short MDC Passenger Cars
STL files for the cars may be downloaded see
(Click here) Under the photos
Baggage car (Click Here)
Coach (Click Here)
Combine (Click Here)
Ops 1 (Click Here)
Ops 2 (Click Here)
You can see ops 1 and 2 have the seats facing the opposite direction
All 5 interiors
Below are custom interiors for a MDC / Roundhouse G&D 50' cars printed 05/05/16 on a MakerBot. These are for the full sized MDC Overton cars and there are more.
The rest of this page was done for my custom cars made from cutting and splicing the short cars and are the wrong width for 50 foot overtons. I have a set of interiors for the off the shelf Overton cars.

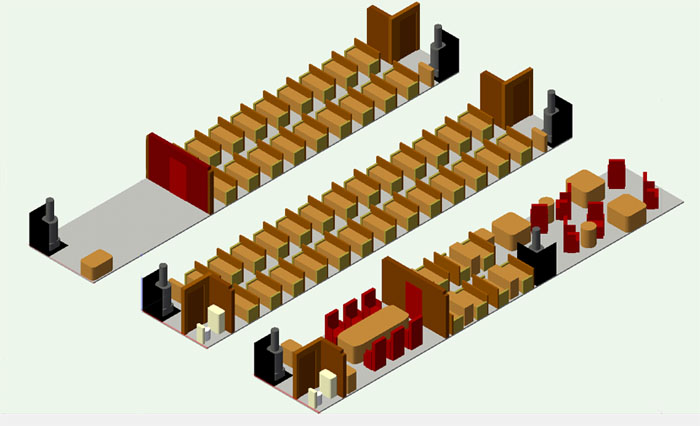

New drawing of the "D" version
The new "D" interiors were printed and are fitted to the MDC production cars.
Original version drawing for my custom cars
Set of 3 Drawings of interiors for my lengthened Model Die Casting HO Scale Overton Passenger Cars.
Setup on the 3D printer
During the printing process inside the 3D Printer
Paul Wussow shows the finished printed interiors in front of the printing system

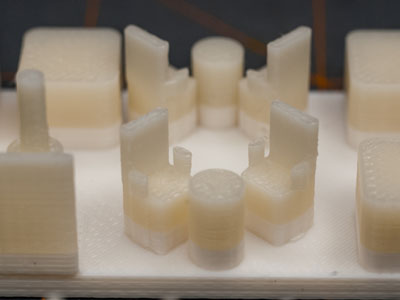

Close-up of the interiors
The base printed on the interiors were thicker than I planned. I used my milling machine to take .020" off and fit the interior into the combine.

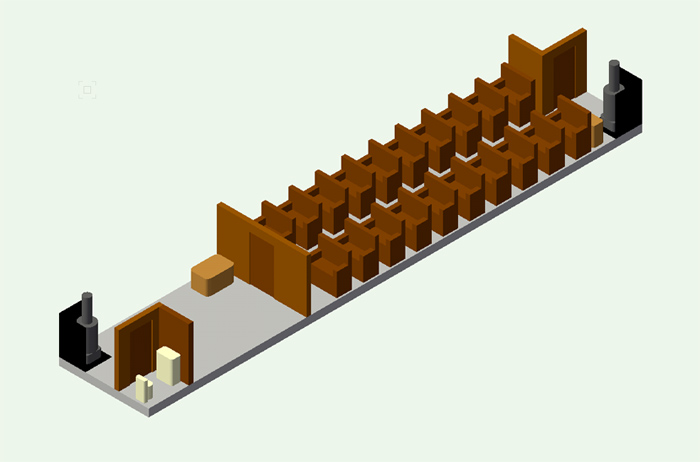

Interior for the Combine

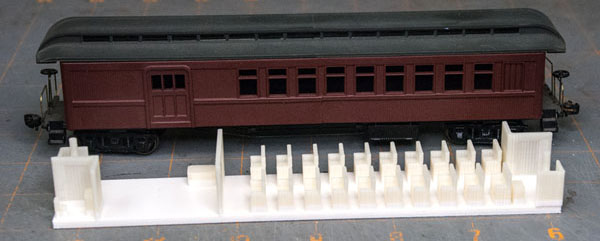

Interior for the Coach

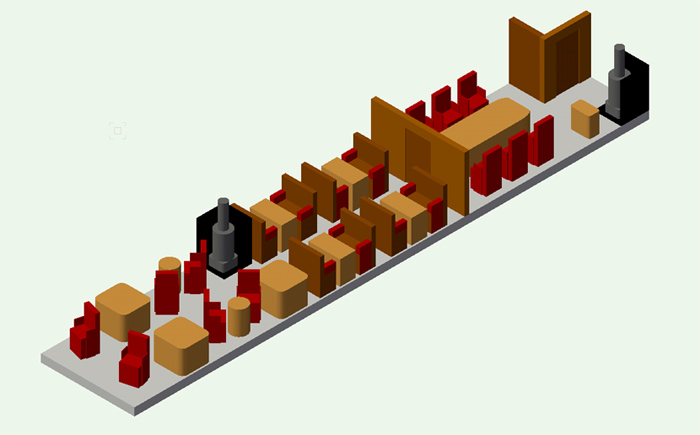

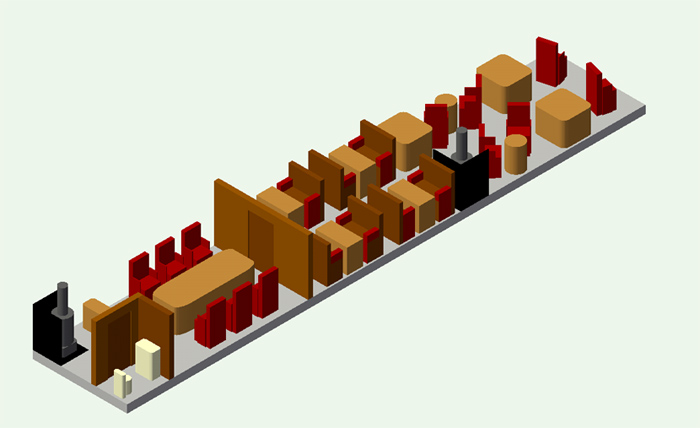

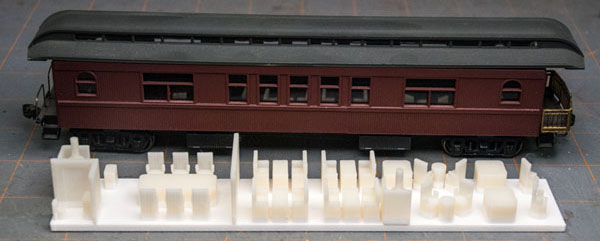

Left and right views of the business car interior.
Steven Yahr teaching Jack Zimmer about the 3D Printer in the Fab Lab

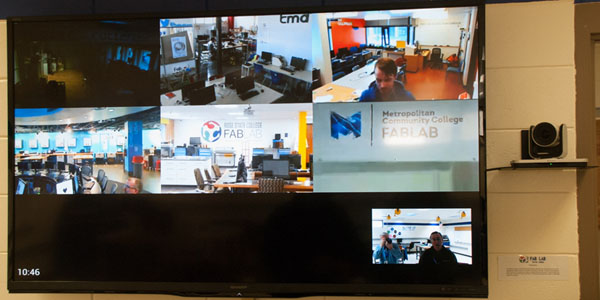

Global connections to the Worlds Fab Labs
Introducing the project to a Fab Lab in Iceland
These interiors include seating, heating, and water closet facilities. The walls and doors are detailed and there are heat shields around and under the stoves. These interiors were designed to fit the 3 Overton cars I built from plans I drew up after reading Al Turner's article in the October 1980 Model Railroader. While the cars appeared in the 50th anniversary contests of MR and also Du Page Division popular vote favorite train contests they have not been evaluated for AP. I am in the process of adding more details to the cars both inside and out.
An old photo of the combine on the layout at my old house. More to come.
Updated 4/24/18
